IP67 · IK08 · RoHS, CE
AG Series · Transparent

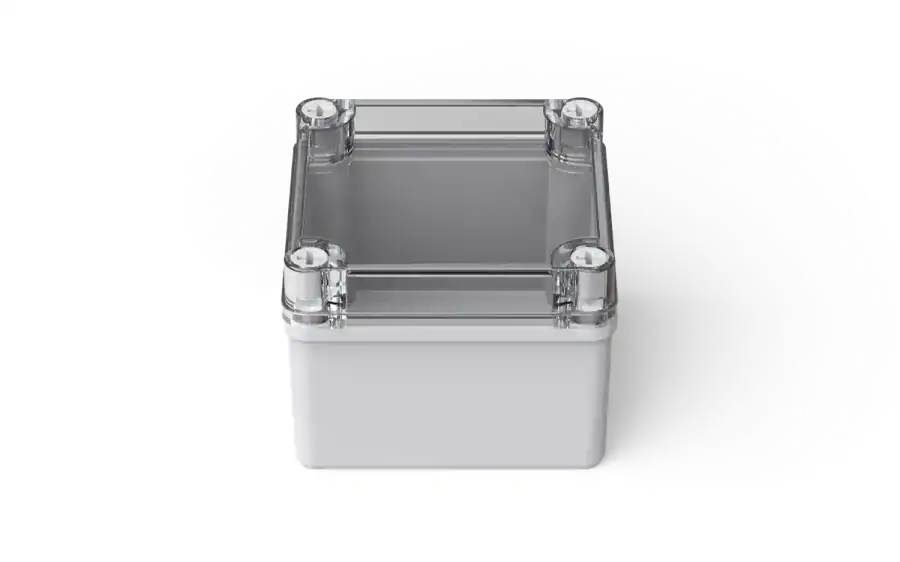

AG100-100-75
AG100-100-75 from the BOWO Electric AG Plastic Waterproof Box. Dimensions: 100 × 100 × 75 mm (3.94 × 3.94 × 2.95 in). Protection: IP67. Contact BOWO Electric for project enquiries.
- External size
- 100 × 100 × 75 mm (3.94 × 3.94 × 2.95 in)
- Material
- ABS enclosure; PC cover option
- Protection
- IP67 · IK08
- Variant
- Transparent
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberAG100-100-75
Product familyAG Plastic Waterproof Box
VariantTransparent
External dimensions100 × 100 × 75 mm (3.94 × 3.94 × 2.95 in)
MaterialABS enclosure; PC cover option
Ingress protectionIP67
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of AG100-100-75?
AG100-100-75 has published external dimensions of 100 × 100 × 75 mm (3.94 × 3.94 × 2.95 in).
What ingress protection does AG100-100-75 provide?
The published ingress protection rating for AG100-100-75 is IP67.
Can AG100-100-75 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
