IP67 · IK08 · RoHS, CE
AG Series · Transparent
AG280-280-130

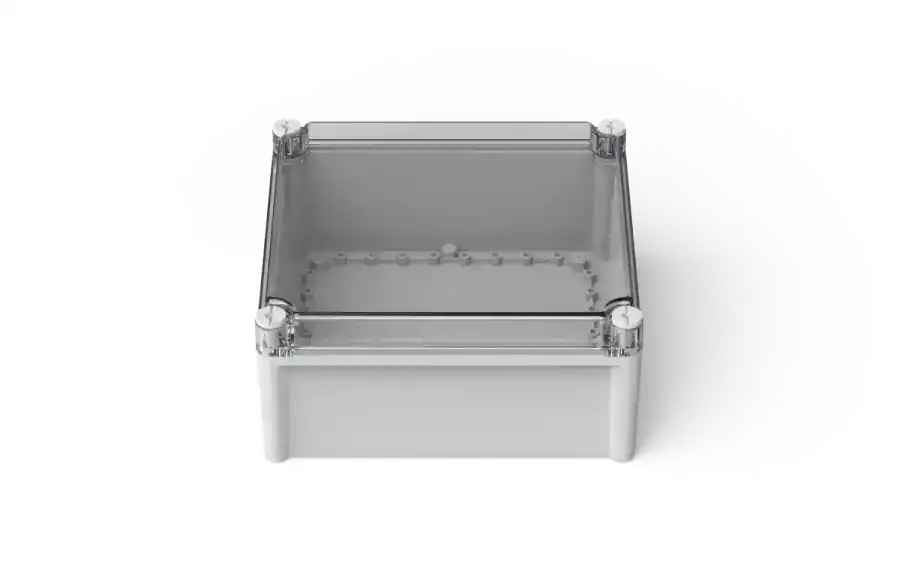

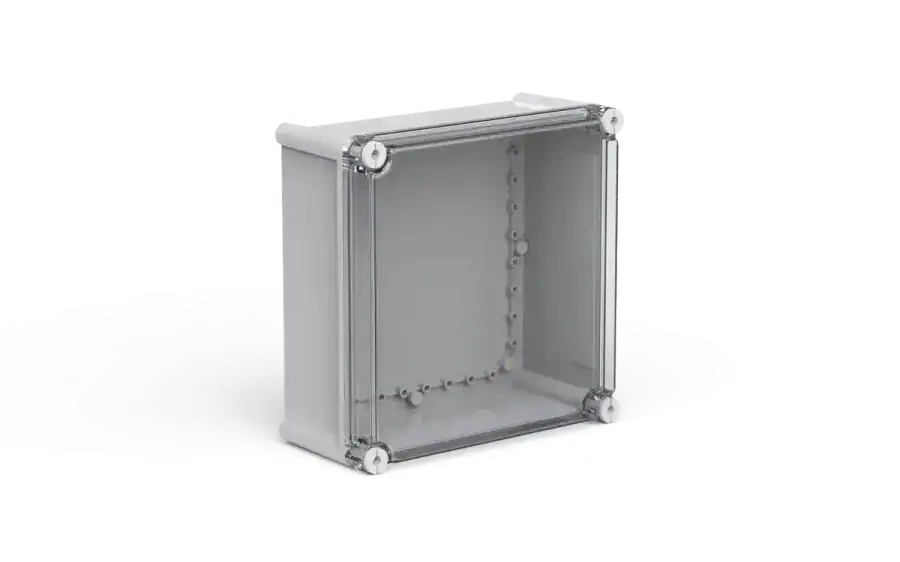

AG280-280-130 from the BOWO Electric AG Plastic Waterproof Box. Dimensions: 280 × 280 × 130 mm (11.02 × 11.02 × 5.12 in). Protection: IP67. Contact BOWO Electric for project enquiries.
- External size
- 280 × 280 × 130 mm (11.02 × 11.02 × 5.12 in)
- Material
- ABS enclosure; PC cover option
- Protection
- IP67 · IK08
- Variant
- Transparent
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberAG280-280-130
Product familyAG Plastic Waterproof Box
VariantTransparent
External dimensions280 × 280 × 130 mm (11.02 × 11.02 × 5.12 in)
MaterialABS enclosure; PC cover option
Ingress protectionIP67
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of AG280-280-130?
AG280-280-130 has published external dimensions of 280 × 280 × 130 mm (11.02 × 11.02 × 5.12 in).
What ingress protection does AG280-280-130 provide?
The published ingress protection rating for AG280-280-130 is IP67.
Can AG280-280-130 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
