IP66 · IK08 · RoHS, CE
Button Box Series · All Models
Seven-hole
Seven-hole from the BOWO Electric Waterproof Button Box. Dimensions: 280 × 190 × 130 mm (11.02 × 7.48 × 5.12 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 280 × 190 × 130 mm (11.02 × 7.48 × 5.12 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- All Models
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberSeven-hole
Product familyWaterproof Button Box
VariantAll Models
External dimensions280 × 190 × 130 mm (11.02 × 7.48 × 5.12 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of Seven-hole?
Seven-hole has published external dimensions of 280 × 190 × 130 mm (11.02 × 7.48 × 5.12 in).
What ingress protection does Seven-hole provide?
The published ingress protection rating for Seven-hole is IP66.
Can Seven-hole be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

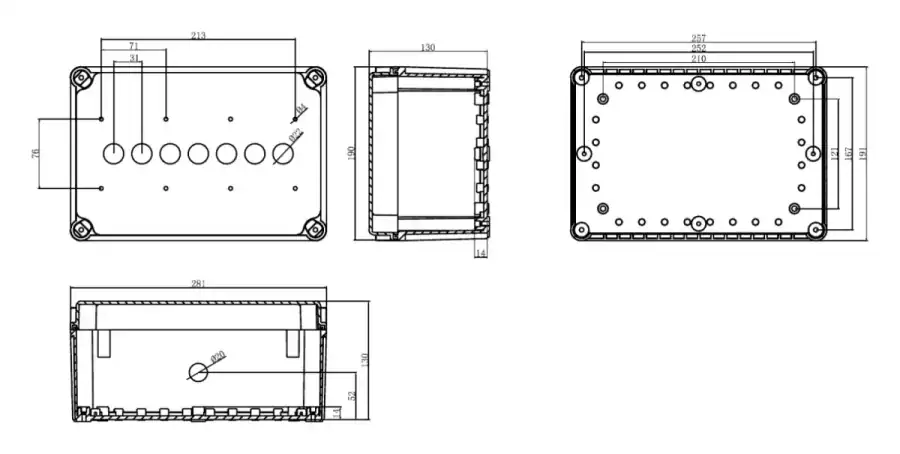

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
