IP68 · RoHS, CE
Cable Gland Series · M Series · White

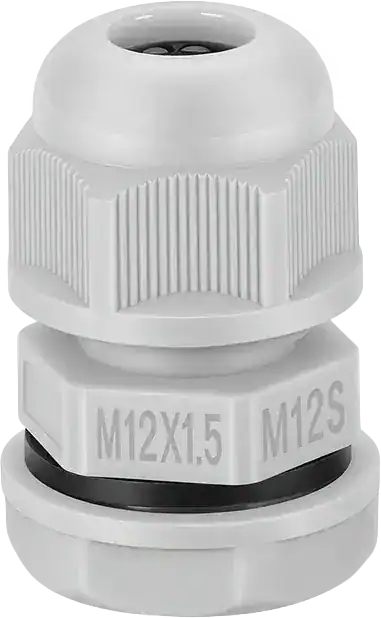

M12S
M12S from the BOWO Electric Waterproof Cable Gland. Dimensions: White · Metric thread. Protection: IP68. Contact BOWO Electric for project enquiries.
- External size
- White · Metric thread
- Material
- Nylon PA66
- Protection
- IP68
- Variant
- M Series · White
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberM12S
Product familyWaterproof Cable Gland
VariantM Series · White
External dimensionsWhite · Metric thread
MaterialNylon PA66
Ingress protectionIP68
CertificationsRoHS, CE
Temperature range-40°C to +100°C
Installation typeThreaded cable entry
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of M12S?
M12S has published external dimensions of White · Metric thread.
What ingress protection does M12S provide?
The published ingress protection rating for M12S is IP68.
Can M12S be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

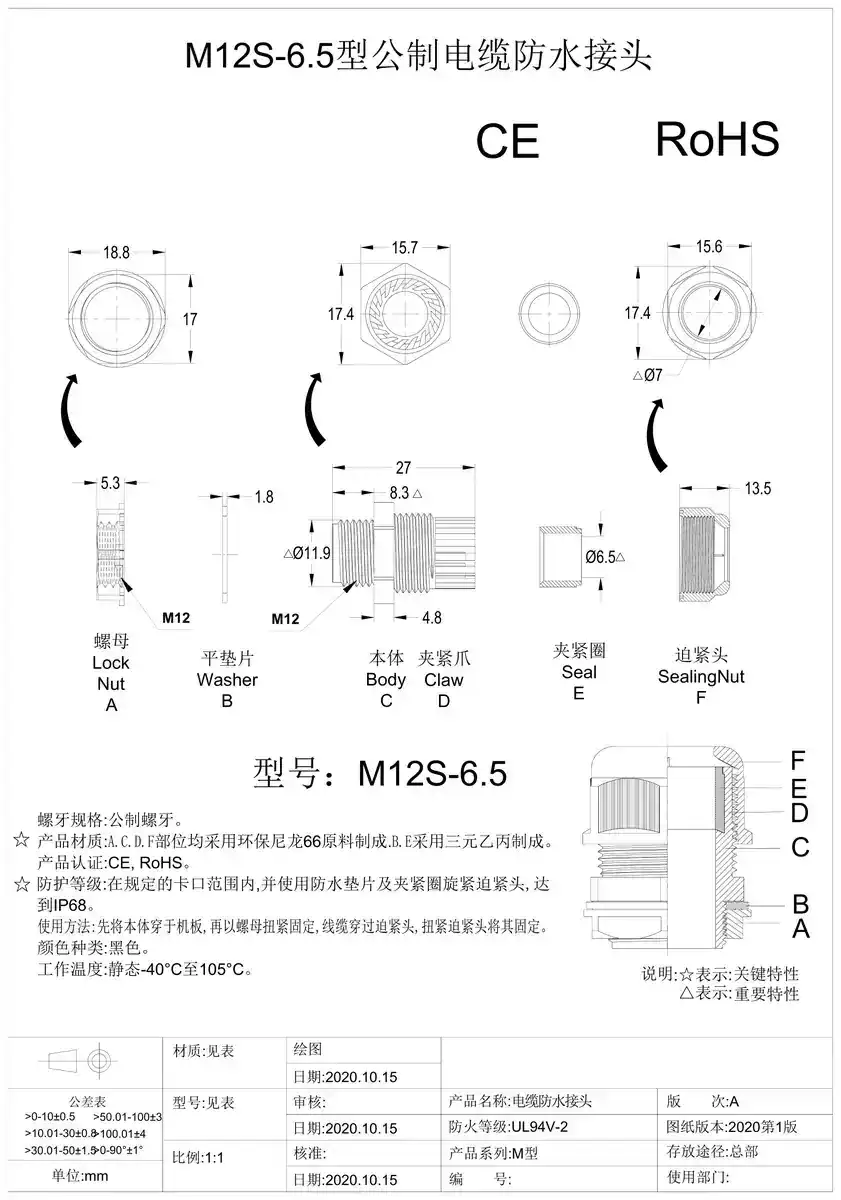

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
