IP66 · IK08 · RoHS, CE
F Series · With Ears · Gray
F115-85-35

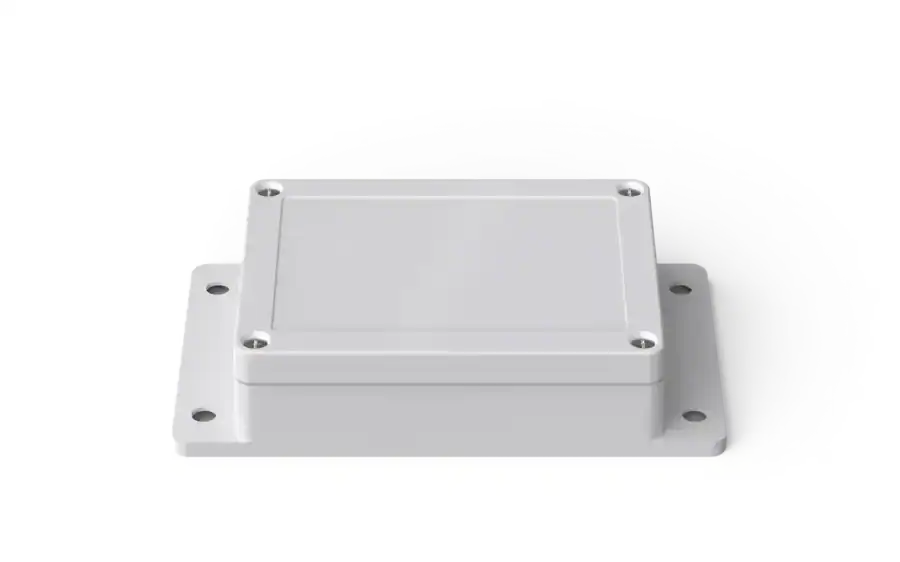

F115-85-35 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 115 × 85 × 35 mm (4.53 × 3.35 × 1.38 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 115 × 85 × 35 mm (4.53 × 3.35 × 1.38 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- With Ears · Gray
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF115-85-35
Product familyF-Type Waterproof Junction Box
VariantWith Ears · Gray
External dimensions115 × 85 × 35 mm (4.53 × 3.35 × 1.38 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, with mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F115-85-35?
F115-85-35 has published external dimensions of 115 × 85 × 35 mm (4.53 × 3.35 × 1.38 in).
What ingress protection does F115-85-35 provide?
The published ingress protection rating for F115-85-35 is IP66.
Can F115-85-35 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
