IP66 · IK08 · RoHS, CE
F Series · With Ears · Gray
F200-120-67

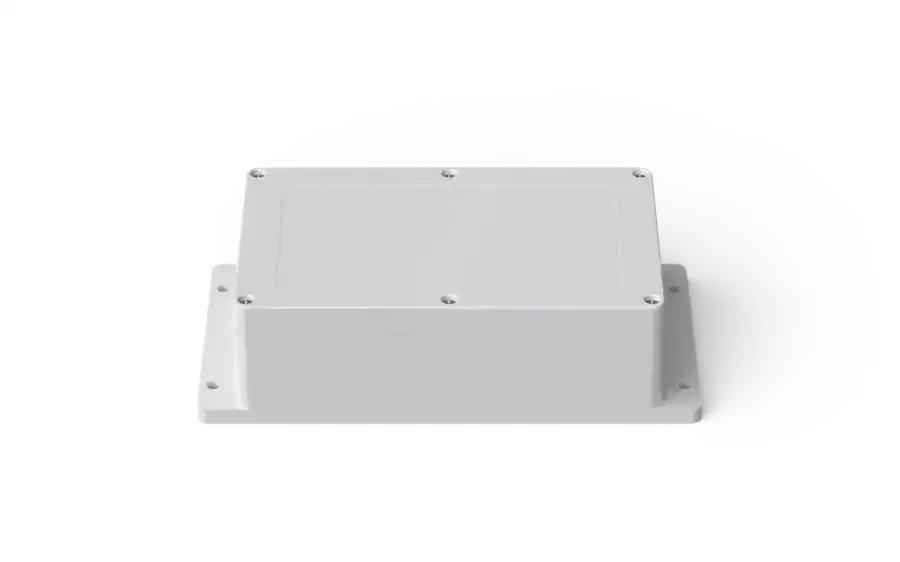

F200-120-67 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 200 × 120 × 67 mm (7.87 × 4.72 × 2.64 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 200 × 120 × 67 mm (7.87 × 4.72 × 2.64 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- With Ears · Gray
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF200-120-67
Product familyF-Type Waterproof Junction Box
VariantWith Ears · Gray
External dimensions200 × 120 × 67 mm (7.87 × 4.72 × 2.64 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, with mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F200-120-67?
F200-120-67 has published external dimensions of 200 × 120 × 67 mm (7.87 × 4.72 × 2.64 in).
What ingress protection does F200-120-67 provide?
The published ingress protection rating for F200-120-67 is IP66.
Can F200-120-67 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
