IP66 · IK08 · RoHS, CE
F Series · No Ears · Black
F100-68-50

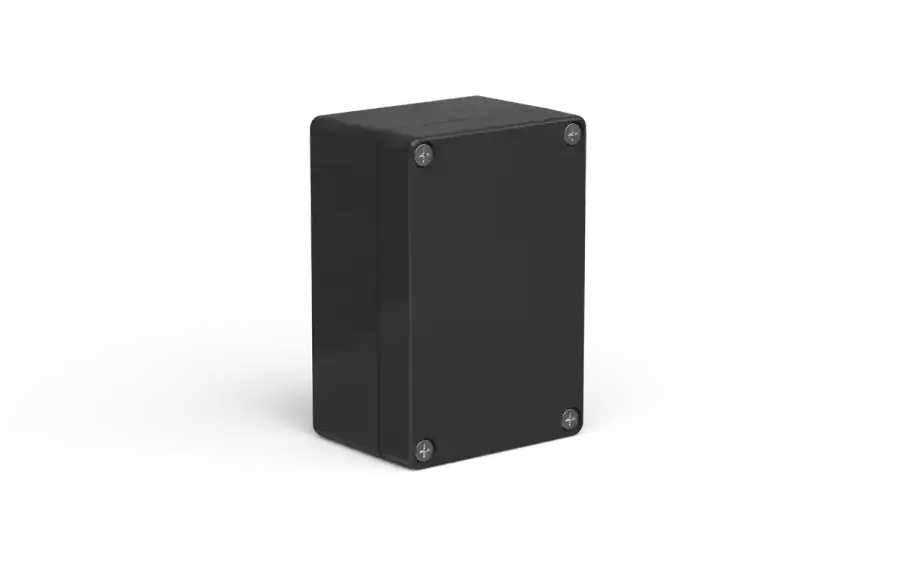

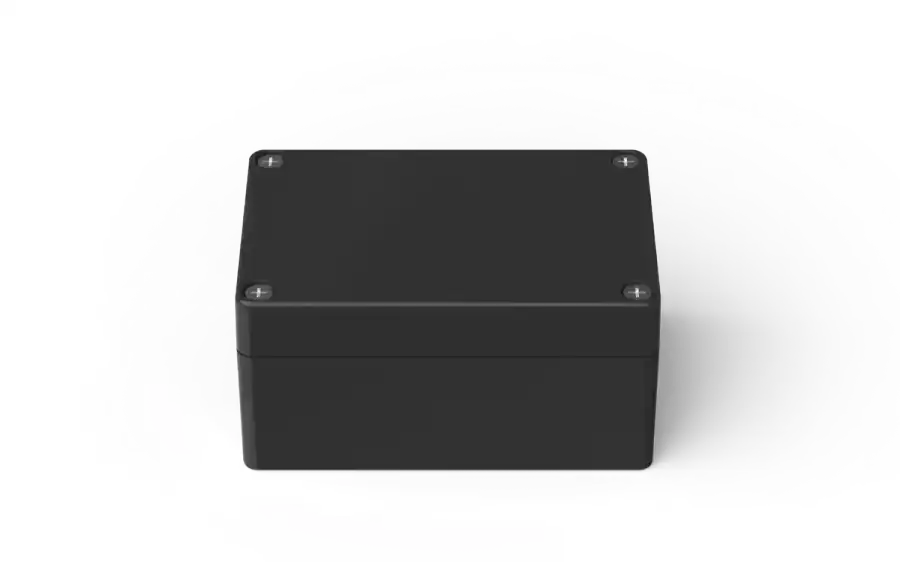

F100-68-50 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- No Ears · Black
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF100-68-50
Product familyF-Type Waterproof Junction Box
VariantNo Ears · Black
External dimensions100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, no mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F100-68-50?
F100-68-50 has published external dimensions of 100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in).
What ingress protection does F100-68-50 provide?
The published ingress protection rating for F100-68-50 is IP66.
Can F100-68-50 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
