IP66 · IK08 · RoHS, CE
F Series · No Ears · Black

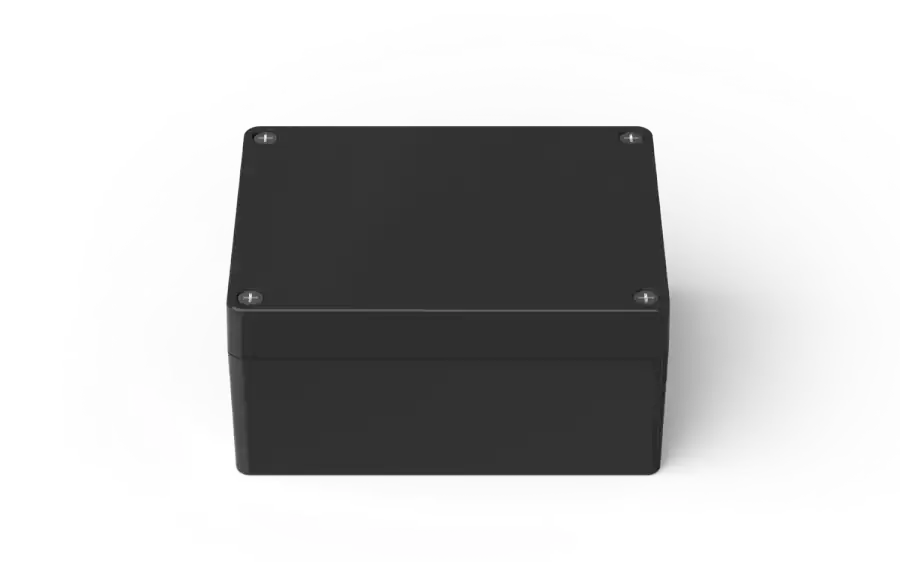

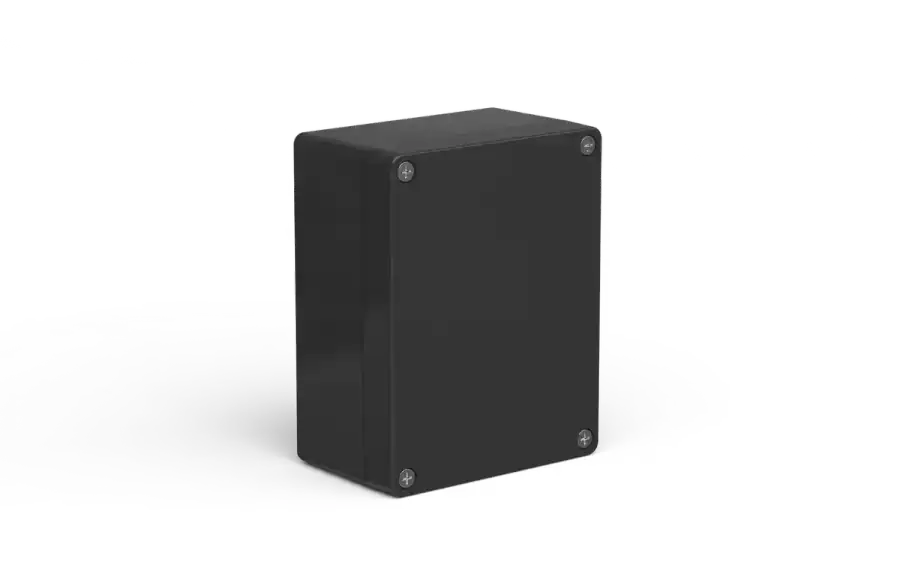

F115-90-55
F115-90-55 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 115 × 90 × 55 mm (4.53 × 3.54 × 2.17 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 115 × 90 × 55 mm (4.53 × 3.54 × 2.17 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- No Ears · Black
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF115-90-55
Product familyF-Type Waterproof Junction Box
VariantNo Ears · Black
External dimensions115 × 90 × 55 mm (4.53 × 3.54 × 2.17 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, no mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F115-90-55?
F115-90-55 has published external dimensions of 115 × 90 × 55 mm (4.53 × 3.54 × 2.17 in).
What ingress protection does F115-90-55 provide?
The published ingress protection rating for F115-90-55 is IP66.
Can F115-90-55 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
