IP66 · IK08 · RoHS, CE
F Series · No Ears · Clear
F240-160-90

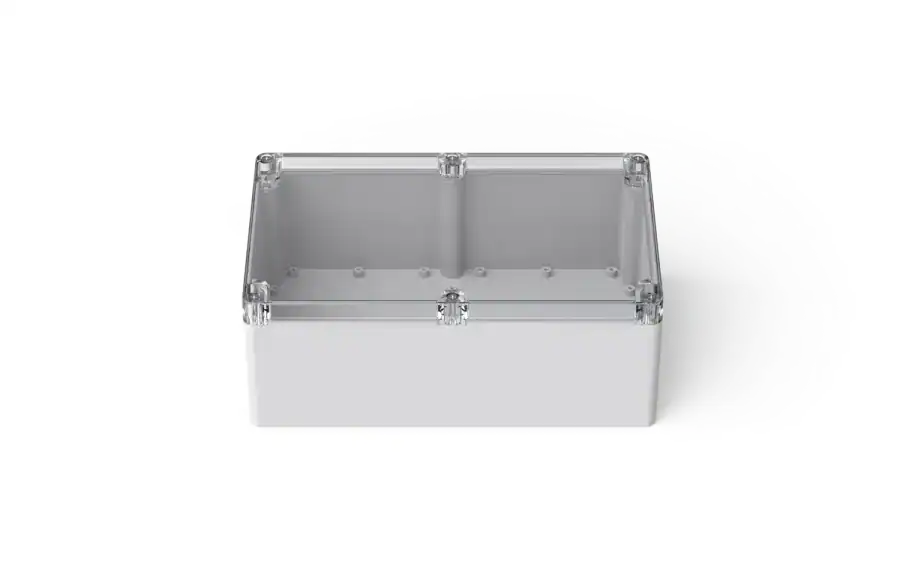

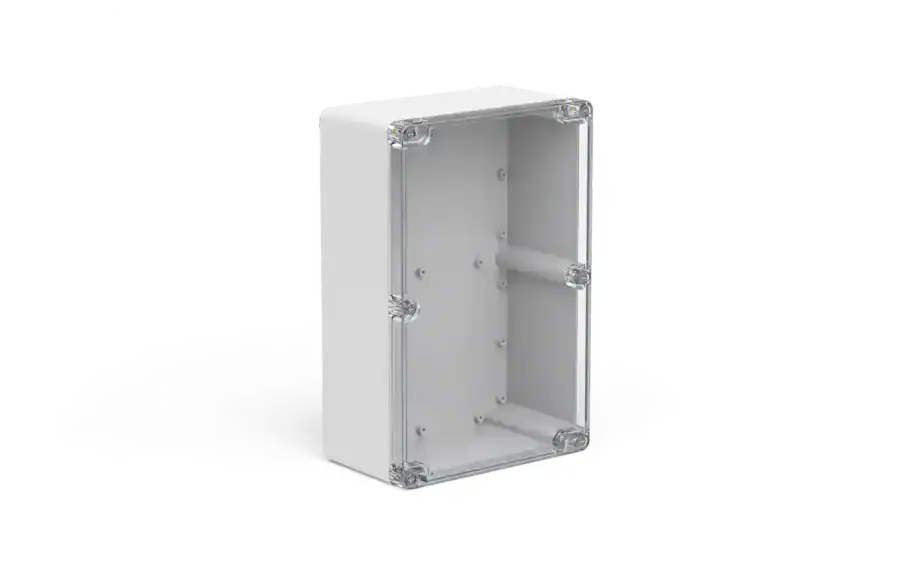

F240-160-90 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 240 × 160 × 90 mm (9.45 × 6.30 × 3.54 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 240 × 160 × 90 mm (9.45 × 6.30 × 3.54 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- No Ears · Clear
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF240-160-90
Product familyF-Type Waterproof Junction Box
VariantNo Ears · Clear
External dimensions240 × 160 × 90 mm (9.45 × 6.30 × 3.54 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, no mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F240-160-90?
F240-160-90 has published external dimensions of 240 × 160 × 90 mm (9.45 × 6.30 × 3.54 in).
What ingress protection does F240-160-90 provide?
The published ingress protection rating for F240-160-90 is IP66.
Can F240-160-90 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
