IP66 · IK08 · RoHS, CE
F Series · No Ears · Gray
F230-150-87

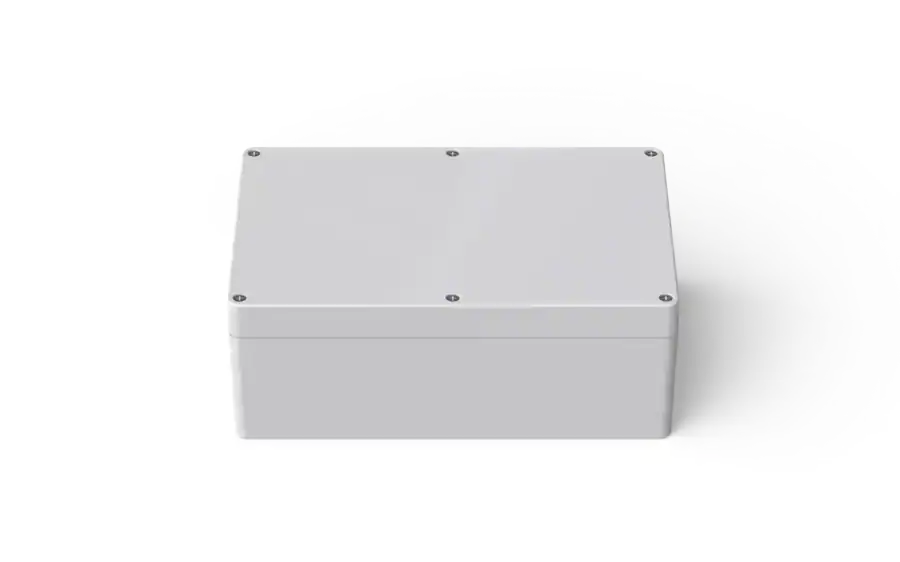

F230-150-87 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 230 × 150 × 87 mm (9.06 × 5.91 × 3.43 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 230 × 150 × 87 mm (9.06 × 5.91 × 3.43 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- No Ears · Gray
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF230-150-87
Product familyF-Type Waterproof Junction Box
VariantNo Ears · Gray
External dimensions230 × 150 × 87 mm (9.06 × 5.91 × 3.43 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, no mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F230-150-87?
F230-150-87 has published external dimensions of 230 × 150 × 87 mm (9.06 × 5.91 × 3.43 in).
What ingress protection does F230-150-87 provide?
The published ingress protection rating for F230-150-87 is IP66.
Can F230-150-87 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
