IP66 · IK08 · RoHS, CE
F Series · No Ears · Gray
F240-160-120

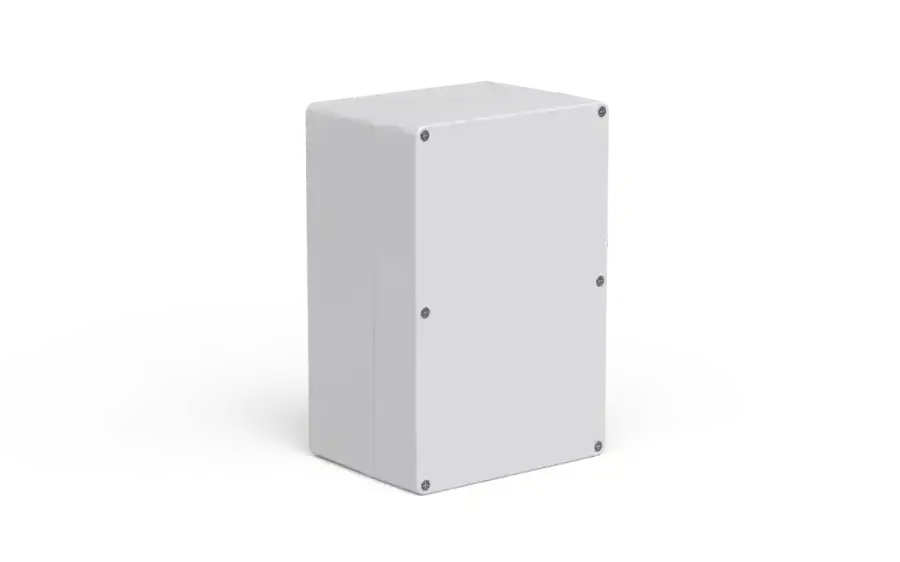

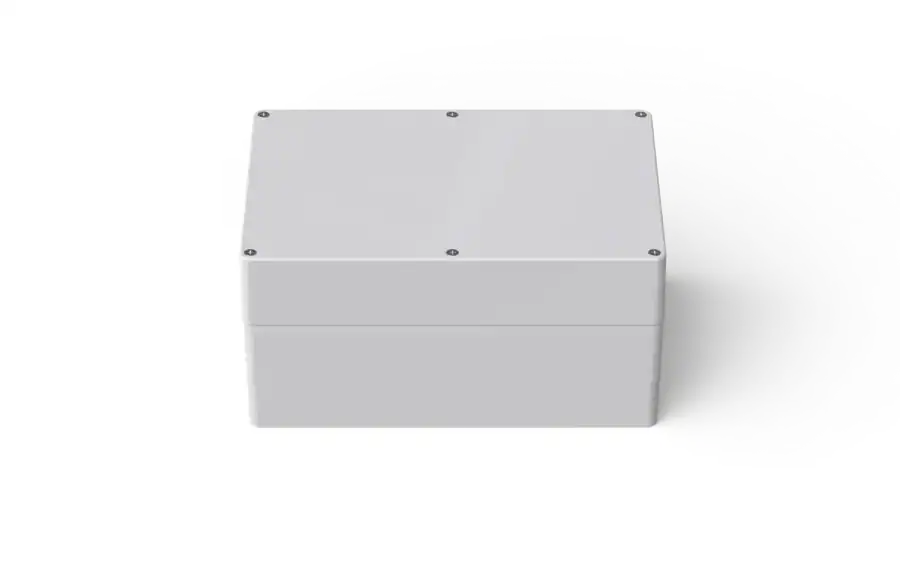

F240-160-120 from the BOWO Electric F-Type Waterproof Junction Box. Dimensions: 240 × 160 × 120 mm (9.45 × 6.30 × 4.72 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 240 × 160 × 120 mm (9.45 × 6.30 × 4.72 in)
- Material
- ABS enclosure
- Protection
- IP66 · IK08
- Variant
- No Ears · Gray
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberF240-160-120
Product familyF-Type Waterproof Junction Box
VariantNo Ears · Gray
External dimensions240 × 160 × 120 mm (9.45 × 6.30 × 4.72 in)
MaterialABS enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeScrew-fixed cover, no mounting ears
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of F240-160-120?
F240-160-120 has published external dimensions of 240 × 160 × 120 mm (9.45 × 6.30 × 4.72 in).
What ingress protection does F240-160-120 provide?
The published ingress protection rating for F240-160-120 is IP66.
Can F240-160-120 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
