IP66 · IK08 · RoHS, CE
HTC Series · All Models

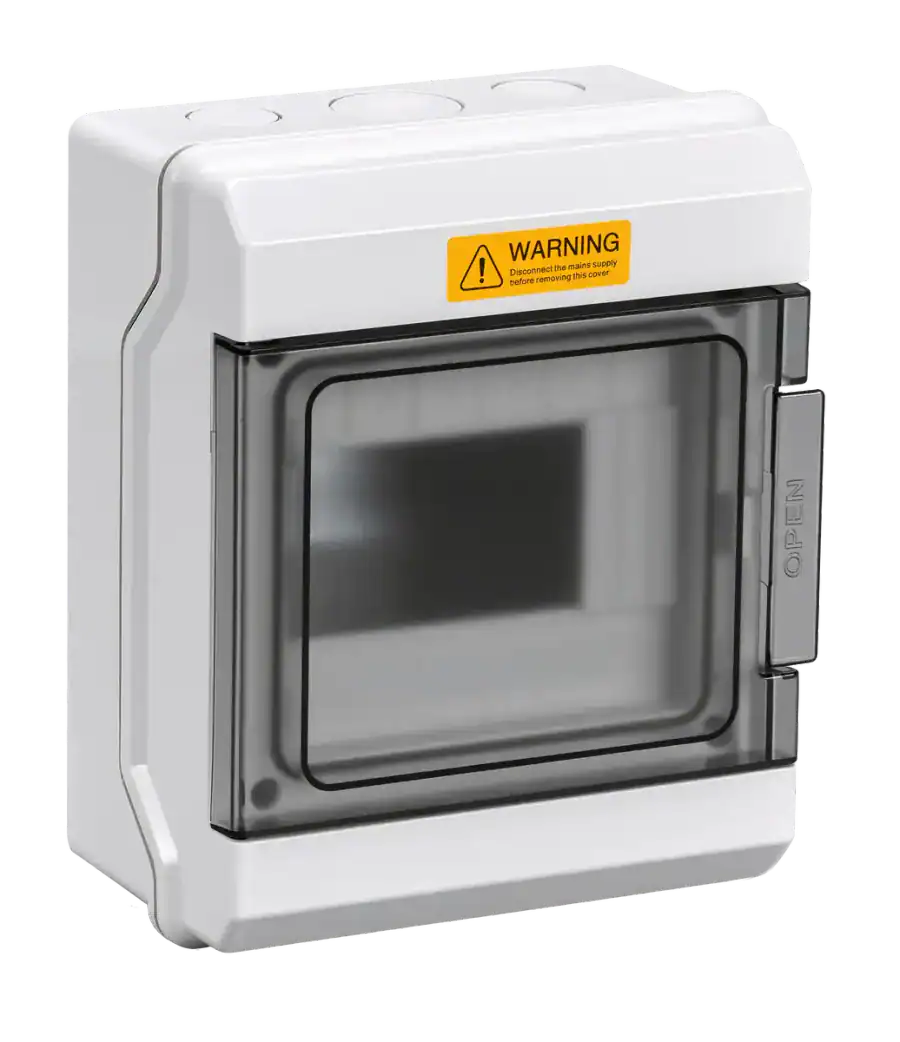

HTC-6
HTC-6 from the BOWO Electric HTC Waterproof Distribution Box. Dimensions: 6 ways. Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 6 ways
- Material
- ABS body with transparent cover
- Protection
- IP66 · IK08
- Variant
- All Models
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberHTC-6
Product familyHTC Waterproof Distribution Box
VariantAll Models
External dimensions6 ways
MaterialABS body with transparent cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of HTC-6?
HTC-6 has published external dimensions of 6 ways.
What ingress protection does HTC-6 provide?
The published ingress protection rating for HTC-6 is IP66.
Can HTC-6 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

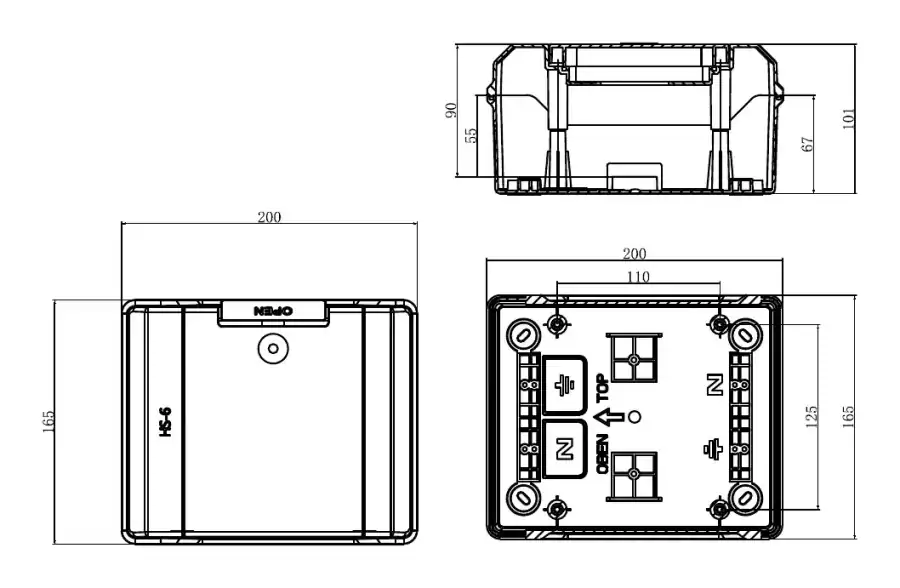

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
