IP66 · IK08 · RoHS, CE
Metal Buckle Series · Transparent Lid
260-160-100
260-160-100 from the BOWO Electric Metal Buckle Waterproof Box. Dimensions: 260 × 160 × 100 mm (10.24 × 6.30 × 3.94 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 260 × 160 × 100 mm (10.24 × 6.30 × 3.94 in)
- Material
- ABS body; ABS or PC cover
- Protection
- IP66 · IK08
- Variant
- Transparent Lid
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number260-160-100
Product familyMetal Buckle Waterproof Box
VariantTransparent Lid
External dimensions260 × 160 × 100 mm (10.24 × 6.30 × 3.94 in)
MaterialABS body; ABS or PC cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeHinged cover with metal buckles
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 260-160-100?
260-160-100 has published external dimensions of 260 × 160 × 100 mm (10.24 × 6.30 × 3.94 in).
What ingress protection does 260-160-100 provide?
The published ingress protection rating for 260-160-100 is IP66.
Can 260-160-100 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

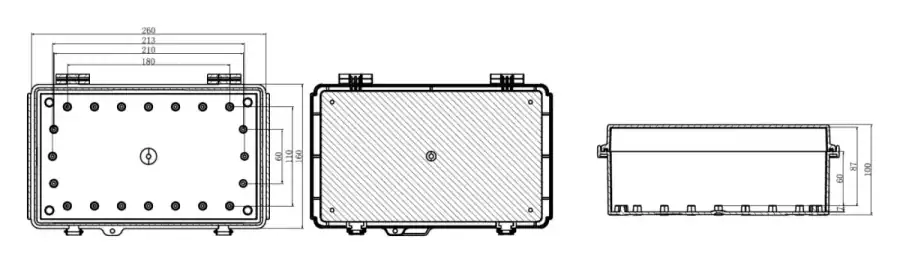

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
