IP66 · IK08 · RoHS, CE
Metal Buckle Series · Gray Lid
150-100-70
150-100-70 from the BOWO Electric Metal Buckle Waterproof Box. Dimensions: 150 × 100 × 70 mm (5.91 × 3.94 × 2.76 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 150 × 100 × 70 mm (5.91 × 3.94 × 2.76 in)
- Material
- ABS body; ABS or PC cover
- Protection
- IP66 · IK08
- Variant
- Gray Lid
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number150-100-70
Product familyMetal Buckle Waterproof Box
VariantGray Lid
External dimensions150 × 100 × 70 mm (5.91 × 3.94 × 2.76 in)
MaterialABS body; ABS or PC cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeHinged cover with metal buckles
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 150-100-70?
150-100-70 has published external dimensions of 150 × 100 × 70 mm (5.91 × 3.94 × 2.76 in).
What ingress protection does 150-100-70 provide?
The published ingress protection rating for 150-100-70 is IP66.
Can 150-100-70 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

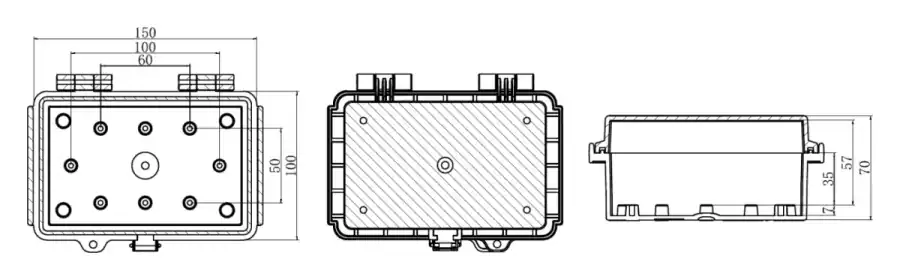

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
