IP66 · IK08 · RoHS, CE
Plastic Buckle Series · Transparent Lid
300-200-180
300-200-180 from the BOWO Electric Plastic Buckle Waterproof Box. Dimensions: 300 × 200 × 180 mm (11.81 × 7.87 × 7.09 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 300 × 200 × 180 mm (11.81 × 7.87 × 7.09 in)
- Material
- ABS body; ABS or PC cover
- Protection
- IP66 · IK08
- Variant
- Transparent Lid
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number300-200-180
Product familyPlastic Buckle Waterproof Box
VariantTransparent Lid
External dimensions300 × 200 × 180 mm (11.81 × 7.87 × 7.09 in)
MaterialABS body; ABS or PC cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeHinged cover with plastic buckles
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 300-200-180?
300-200-180 has published external dimensions of 300 × 200 × 180 mm (11.81 × 7.87 × 7.09 in).
What ingress protection does 300-200-180 provide?
The published ingress protection rating for 300-200-180 is IP66.
Can 300-200-180 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

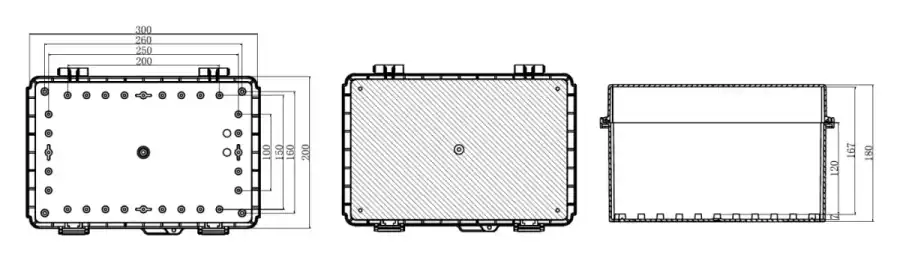

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
