IP66 · IK08 · RoHS, CE
Plastic Buckle Series · Transparent Lid
400-300-170

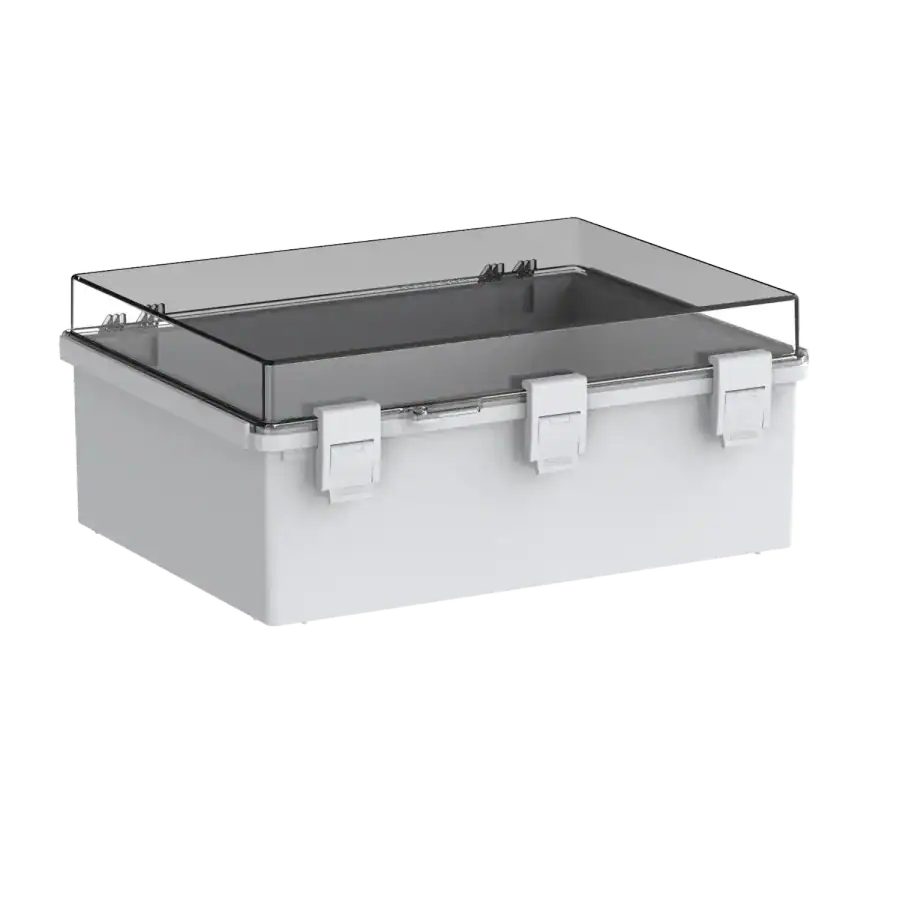

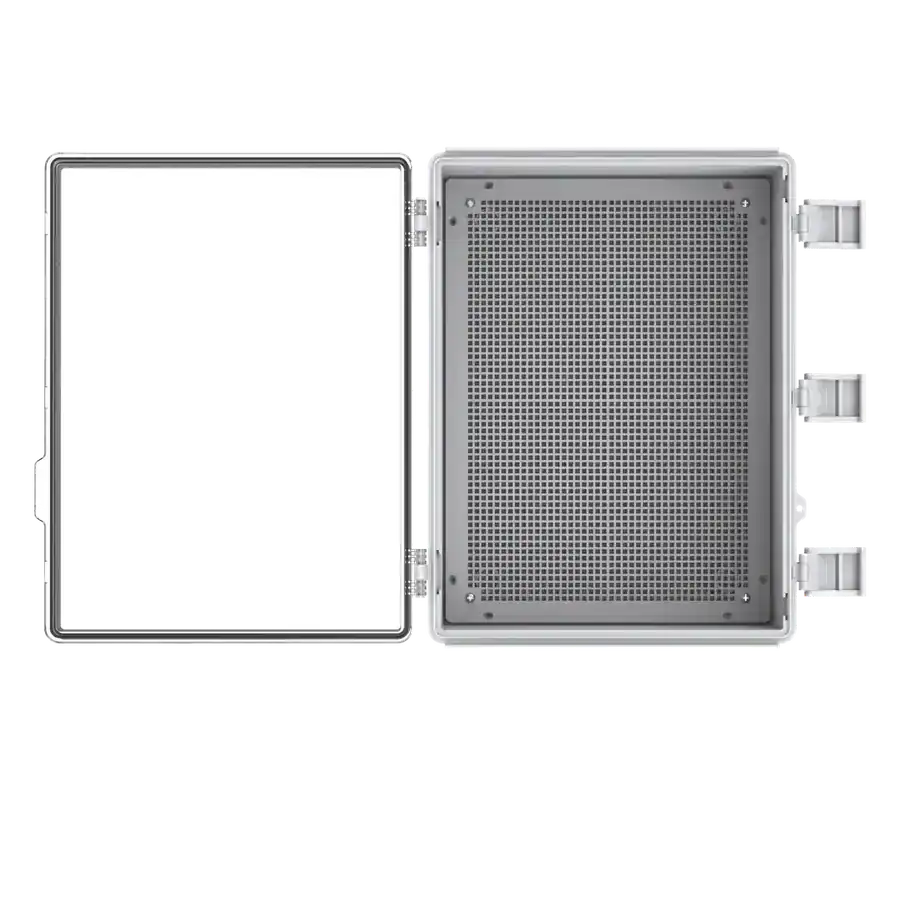

400-300-170 from the BOWO Electric Plastic Buckle Waterproof Box. Dimensions: 400 × 300 × 170 mm (15.75 × 11.81 × 6.69 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 400 × 300 × 170 mm (15.75 × 11.81 × 6.69 in)
- Material
- ABS body; ABS or PC cover
- Protection
- IP66 · IK08
- Variant
- Transparent Lid
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number400-300-170
Product familyPlastic Buckle Waterproof Box
VariantTransparent Lid
External dimensions400 × 300 × 170 mm (15.75 × 11.81 × 6.69 in)
MaterialABS body; ABS or PC cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeHinged cover with plastic buckles
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 400-300-170?
400-300-170 has published external dimensions of 400 × 300 × 170 mm (15.75 × 11.81 × 6.69 in).
What ingress protection does 400-300-170 provide?
The published ingress protection rating for 400-300-170 is IP66.
Can 400-300-170 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

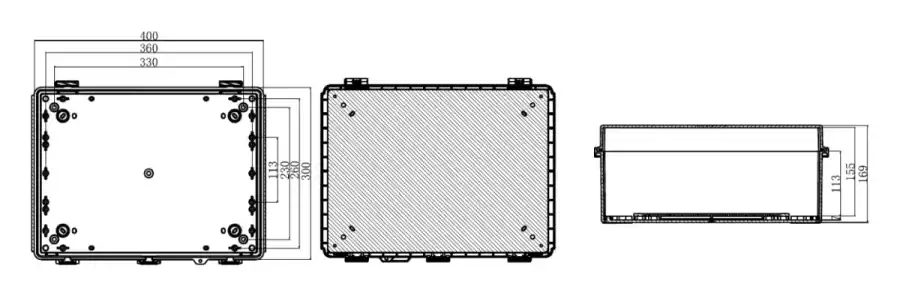

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
