IP66 · IK08 · RoHS, CE
Plastic Buckle Series · Gray Lid
150-150-90
150-150-90 from the BOWO Electric Plastic Buckle Waterproof Box. Dimensions: 150 × 150 × 90 mm (5.91 × 5.91 × 3.54 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 150 × 150 × 90 mm (5.91 × 5.91 × 3.54 in)
- Material
- ABS body; ABS or PC cover
- Protection
- IP66 · IK08
- Variant
- Gray Lid
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number150-150-90
Product familyPlastic Buckle Waterproof Box
VariantGray Lid
External dimensions150 × 150 × 90 mm (5.91 × 5.91 × 3.54 in)
MaterialABS body; ABS or PC cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeHinged cover with plastic buckles
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 150-150-90?
150-150-90 has published external dimensions of 150 × 150 × 90 mm (5.91 × 5.91 × 3.54 in).
What ingress protection does 150-150-90 provide?
The published ingress protection rating for 150-150-90 is IP66.
Can 150-150-90 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

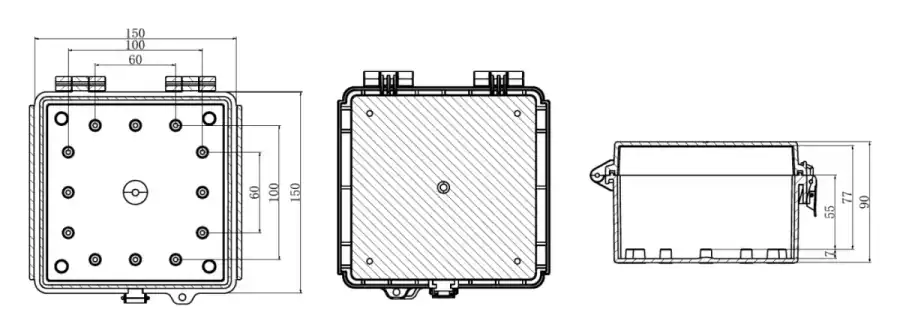

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
