IP66 · IK08 · RoHS, CE
Plastic Buckle Series · Gray Lid
300-300-170

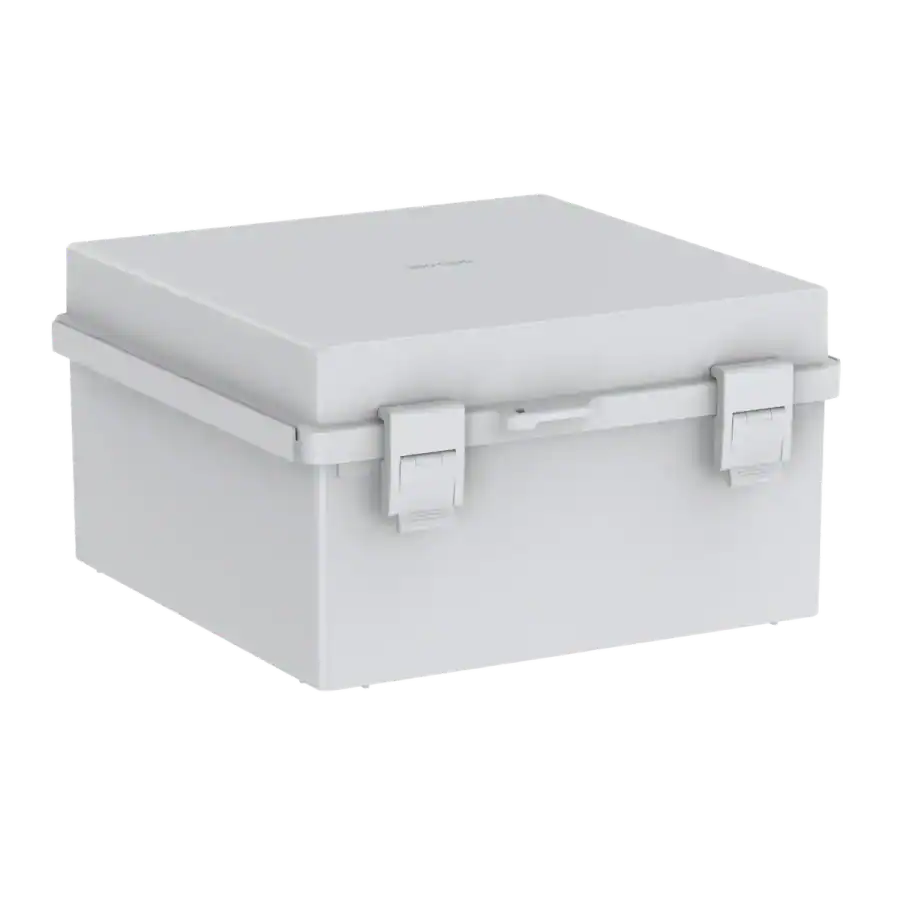

300-300-170 from the BOWO Electric Plastic Buckle Waterproof Box. Dimensions: 300 × 300 × 170 mm (11.81 × 11.81 × 6.69 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 300 × 300 × 170 mm (11.81 × 11.81 × 6.69 in)
- Material
- ABS body; ABS or PC cover
- Protection
- IP66 · IK08
- Variant
- Gray Lid
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number300-300-170
Product familyPlastic Buckle Waterproof Box
VariantGray Lid
External dimensions300 × 300 × 170 mm (11.81 × 11.81 × 6.69 in)
MaterialABS body; ABS or PC cover
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-40°C to +80°C
Installation typeHinged cover with plastic buckles
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 300-300-170?
300-300-170 has published external dimensions of 300 × 300 × 170 mm (11.81 × 11.81 × 6.69 in).
What ingress protection does 300-300-170 provide?
The published ingress protection rating for 300-300-170 is IP66.
Can 300-300-170 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

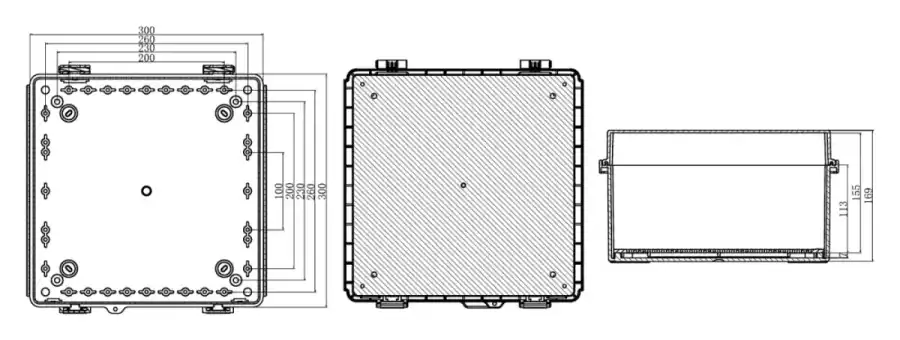

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
