IP66 · IK08 · RoHS, CE
Socket Box Series · All Models
Eight Sockets

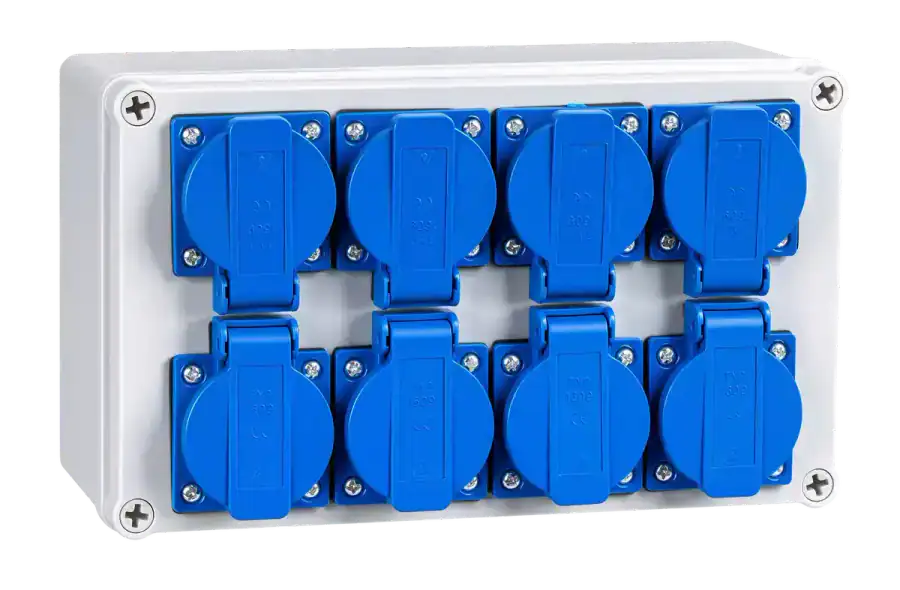

Eight Sockets from the BOWO Electric Industrial Socket Box. Dimensions: 250 × 150 × 100 mm (9.84 × 5.91 × 3.94 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 250 × 150 × 100 mm (9.84 × 5.91 × 3.94 in)
- Material
- ABS / PC enclosure
- Protection
- IP66 · IK08
- Variant
- All Models
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberEight Sockets
Product familyIndustrial Socket Box
VariantAll Models
External dimensions250 × 150 × 100 mm (9.84 × 5.91 × 3.94 in)
MaterialABS / PC enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of Eight Sockets?
Eight Sockets has published external dimensions of 250 × 150 × 100 mm (9.84 × 5.91 × 3.94 in).
What ingress protection does Eight Sockets provide?
The published ingress protection rating for Eight Sockets is IP66.
Can Eight Sockets be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

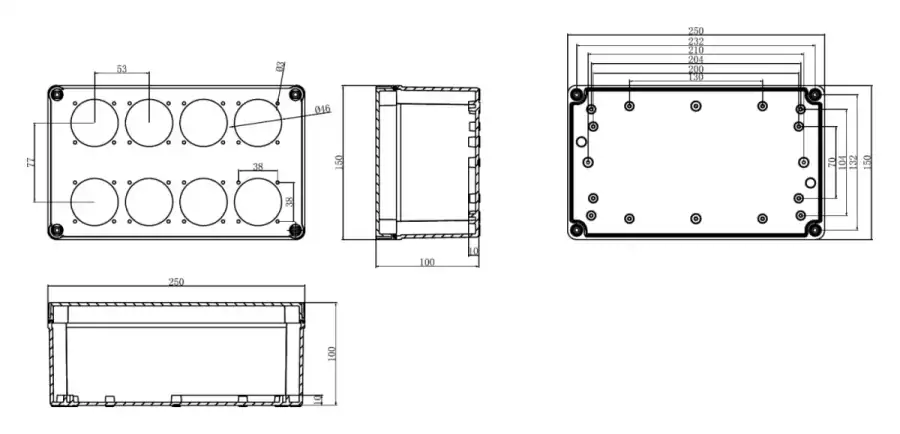

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
