IP66 · IK08 · RoHS, CE
Socket Box Series · All Models
Four Sockets
Four Sockets from the BOWO Electric Industrial Socket Box. Dimensions: 200 × 150 × 75 mm (7.87 × 5.91 × 2.95 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 200 × 150 × 75 mm (7.87 × 5.91 × 2.95 in)
- Material
- ABS / PC enclosure
- Protection
- IP66 · IK08
- Variant
- All Models
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberFour Sockets
Product familyIndustrial Socket Box
VariantAll Models
External dimensions200 × 150 × 75 mm (7.87 × 5.91 × 2.95 in)
MaterialABS / PC enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of Four Sockets?
Four Sockets has published external dimensions of 200 × 150 × 75 mm (7.87 × 5.91 × 2.95 in).
What ingress protection does Four Sockets provide?
The published ingress protection rating for Four Sockets is IP66.
Can Four Sockets be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

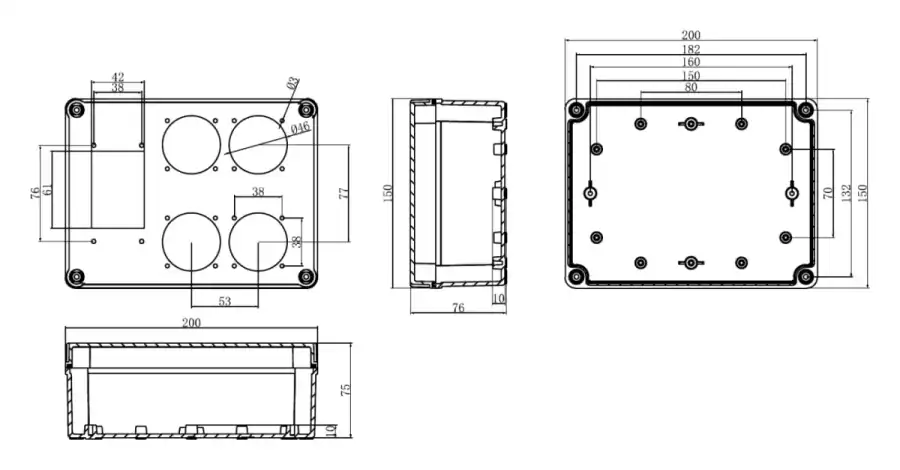

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
