IP66 · IK08 · RoHS, CE
Terminal Box Series · All Models
TB-4506

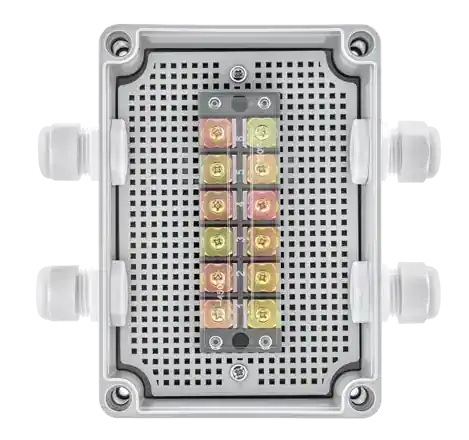

TB-4506 from the BOWO Electric Waterproof Terminal Box. Dimensions: 175 × 125 × 75 mm (6.89 × 4.92 × 2.95 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 175 × 125 × 75 mm (6.89 × 4.92 × 2.95 in)
- Material
- ABS / PC enclosure
- Protection
- IP66 · IK08
- Variant
- All Models
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberTB-4506
Product familyWaterproof Terminal Box
VariantAll Models
External dimensions175 × 125 × 75 mm (6.89 × 4.92 × 2.95 in)
MaterialABS / PC enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of TB-4506?
TB-4506 has published external dimensions of 175 × 125 × 75 mm (6.89 × 4.92 × 2.95 in).
What ingress protection does TB-4506 provide?
The published ingress protection rating for TB-4506 is IP66.
Can TB-4506 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

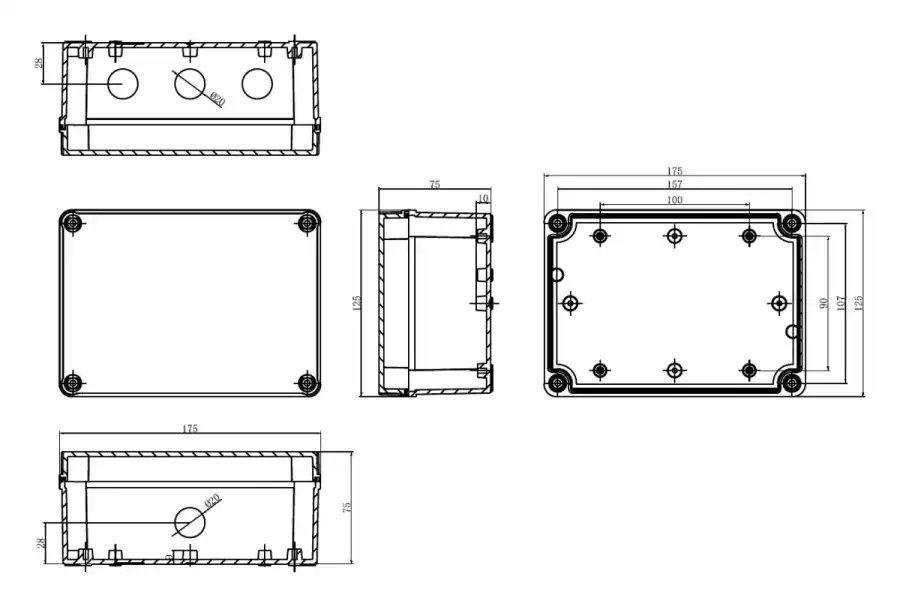

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
