IP66 · IK08 · RoHS, CE
Terminal Box Series · All Models
Terminal 3-3
Terminal 3-3 from the BOWO Electric Waterproof Terminal Box. Dimensions: 100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in)
- Material
- ABS / PC enclosure
- Protection
- IP66 · IK08
- Variant
- All Models
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model numberTerminal 3-3
Product familyWaterproof Terminal Box
VariantAll Models
External dimensions100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in)
MaterialABS / PC enclosure
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeStandard enclosure installation
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of Terminal 3-3?
Terminal 3-3 has published external dimensions of 100 × 68 × 50 mm (3.94 × 2.68 × 1.97 in).
What ingress protection does Terminal 3-3 provide?
The published ingress protection rating for Terminal 3-3 is IP66.
Can Terminal 3-3 be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

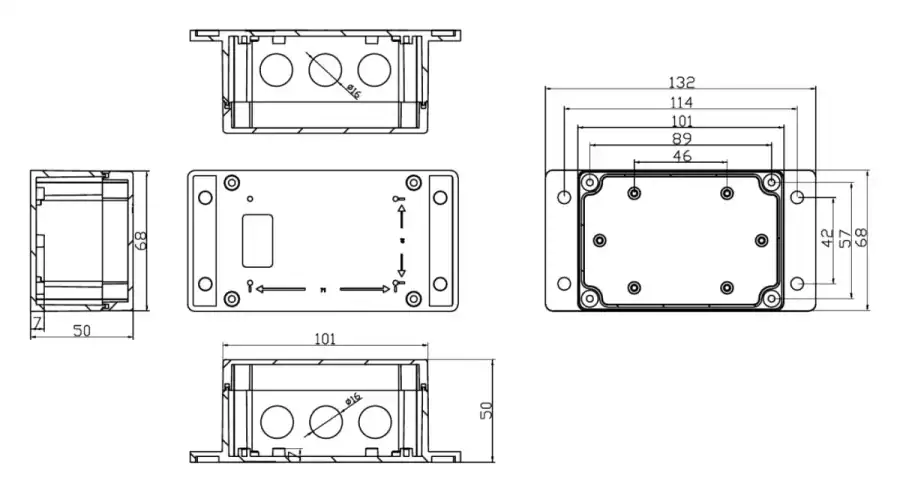

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
