IP66 · IK08 · RoHS, CE
Window Cover Series · Without Baseplate
3 modules
3 modules from the BOWO Electric Electrical Window Cover. Dimensions: 76 × 95 × 31 mm (2.99 × 3.74 × 1.22 in). Protection: IP66. Contact BOWO Electric for project enquiries.
- External size
- 76 × 95 × 31 mm (2.99 × 3.74 × 1.22 in)
- Material
- Transparent polycarbonate
- Protection
- IP66 · IK08
- Variant
- Without Baseplate
Product data
Details introduction
Core product information for specification and project review.
Technical specifications
Model number3 modules
Product familyElectrical Window Cover
VariantWithout Baseplate
External dimensions76 × 95 × 31 mm (2.99 × 3.74 × 1.22 in)
MaterialTransparent polycarbonate
Ingress protectionIP66
Impact resistanceIK08
CertificationsRoHS, CE
Temperature range-25°C to +80°C
Installation typeWithout baseplate
Customization optionsFlame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.
Product FAQ
What are the dimensions of 3 modules?
3 modules has published external dimensions of 76 × 95 × 31 mm (2.99 × 3.74 × 1.22 in).
What ingress protection does 3 modules provide?
The published ingress protection rating for 3 modules is IP66.
Can 3 modules be customized?
Flame-retardant and UV-resistant materials; custom CNC openings, laser marking, UV color printing, and other project-specific options.

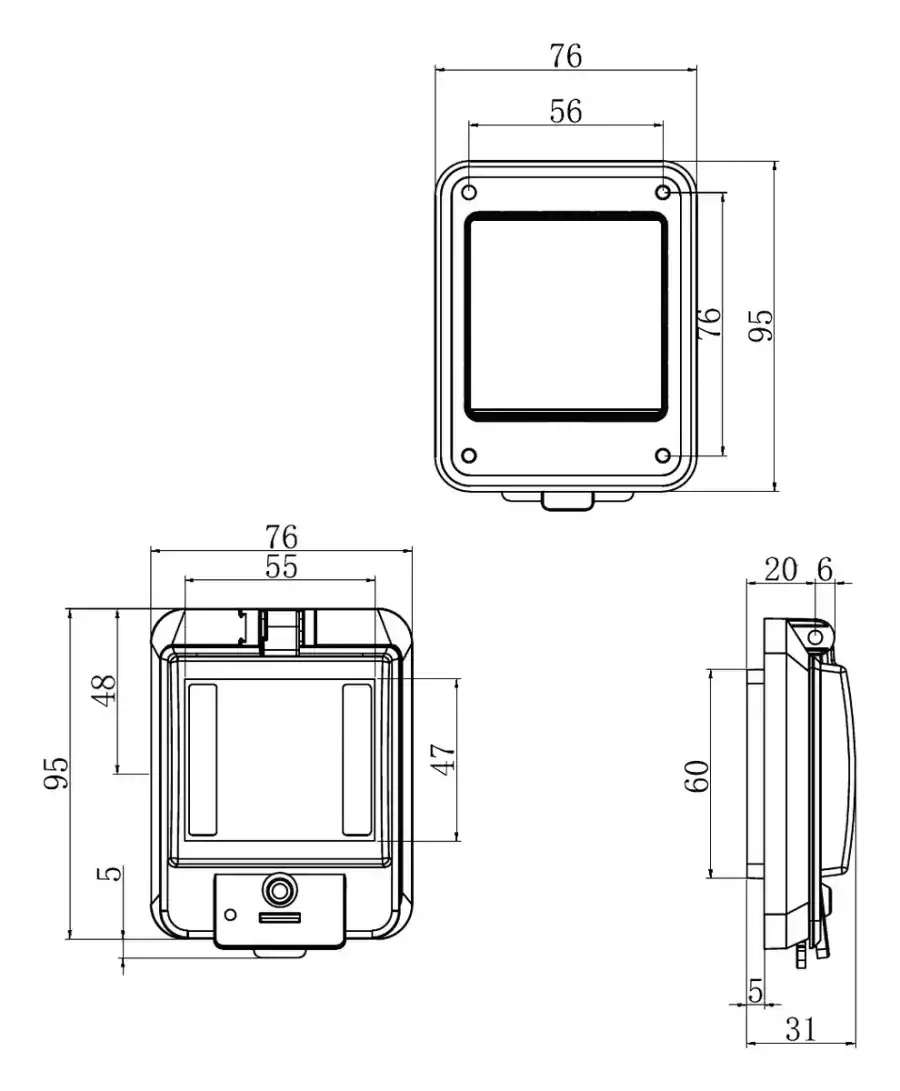

Dimensional drawingAll dimensions in millimeters
Customization readyCNC openings, printing and laser marking
Engineering documentationModel-specific files available on request
Production supportSample confirmation before volume production
